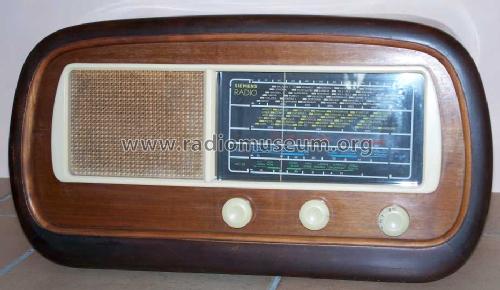

S551

S551; Siemens Italia; (ID = 235741) Radio

S551; Siemens Italia; (ID = 262081) Radio
S551; Siemens Italia; (ID = 249695) Radio S551; Siemens Italia; (ID = 249697) Radio

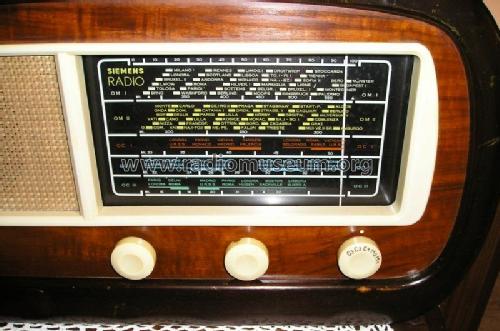

S551; Siemens Italia; (ID = 249696) Radio S551; Siemens Italia; (ID = 249698) Radio
S551; Siemens Italia; (ID = 679765) Radio S551; Siemens Italia; (ID = 1054576) Radio
S551; Siemens Italia; (ID = 1196303) Radio S551; Siemens Italia; (ID = 1266302) Radio
S551; Siemens Italia; (ID = 1925445) Radio S551; Siemens Italia; (ID = 1925446) Radio
Use red slider bar for more.
S551; Siemens Italia; (ID = 249695) Radio
Siemens Italia;: S551 [Radio] ID = 249695 651x376
Select picture or schematic to display from thumbnails on the right and click for download.
For model S551, Siemens Italia; Milano:
Foto per cortesia del venditore ebay: fravagnano

Country:  Italy
Manufacturer / Brand:  Siemens Italia; Milano
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF41 UAF41 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: S551 - Siemens Italia; Milano
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 290 x 210 mm / 21.3 x 11.4 x 8.3 inch
Notes

Gamme d'onda: 2× OM, 3× OC.
Wave bands: 2× BC, 3× SW.

Autotrasformatore, telaio collegato alla rete elettrica.

(

Gamme d'onda: 2× OM, 3× OC.
Wave bands: 2× BC, 3× SW.

Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

?)
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Riparazioni - Scuola Radio Elettra (pag. S13; anche in: Collezione di Schemi, Scuola Radio Elettra 1953)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 314)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Siemens Italia; Milano
Here you find 196 models, 153 with images and 148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
