- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 173598

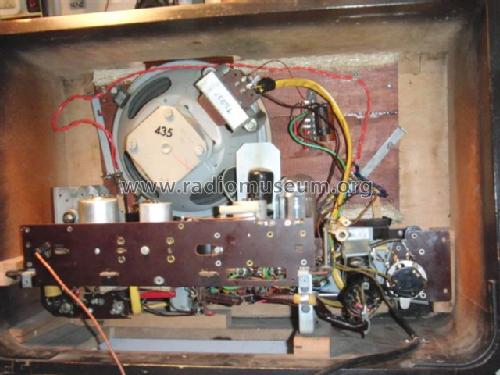

para el modelo Siemens S 668 GW.
para el modelo Siemens S 668 GW.
para el modelo Siemens S 668 GW.
para el modelo Siemens S 668 GW.
para el modelo Siemens S 668 GW.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 150; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: S668GW - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Notes
- Siemens S668GW is an export model for the Swedish market.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Ramon Mor Fernandez. See "Data change" for further contributors.
