Qualitätssuper SH623W

Qualitätssuper SH623W; Siemens; D S.& (ID = 1632882) Radio Qualitätssuper SH623W; Siemens; D S.& (ID = 160378) Radio
Qualitätssuper SH623W; Siemens; D S.& (ID = 160384) Radio Qualitätssuper SH623W; Siemens; D S.& (ID = 160382) Radio
Qualitätssuper SH623W; Siemens; D S.& (ID = 160380) Radio Qualitätssuper SH623W; Siemens; D S.& (ID = 160383) Radio
Qualitätssuper SH623W; Siemens; D S.& (ID = 160385) Radio Qualitätssuper SH623W; Siemens; D S.& (ID = 160386) Radio
Qualitätssuper SH623W; Siemens; D S.& (ID = 160387) Radio Qualitätssuper SH623W; Siemens; D S.& (ID = 160436) Radio
Use red slider bar for more.

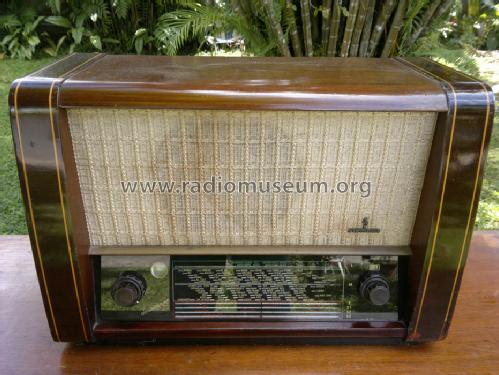

Qualitätssuper SH623W; Siemens; D S.& (ID = 1632882) Radio
Siemens; D S.&: Qualitätssuper SH623W [Radio] ID = 1632882 930x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Qualitätssuper SH623W, Siemens; D (S.& Halske / S. Electrogeräte):
By courtesy of Lauritz.com (Bild bearbeitet)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EAF42 EL41 EM34
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: Qualitätssuper SH623W - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 310 x 210 mm / 20.1 x 12.2 x 8.3 inch
Source of data - - Data from my own collection

Model page created by Gonzalo Moncada-Jimenez. See "Data change" for further contributors.
