• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123147

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: SM6134 - Siemens Italia; Milano

• Notes

• Gamme d'onda ricevute: OM 520-1615 Kc, OC1 3,45-10,3 Mc, OC2 9,5-23 Mc

  Giredischi Polidor

• Literature/Schematics (1)

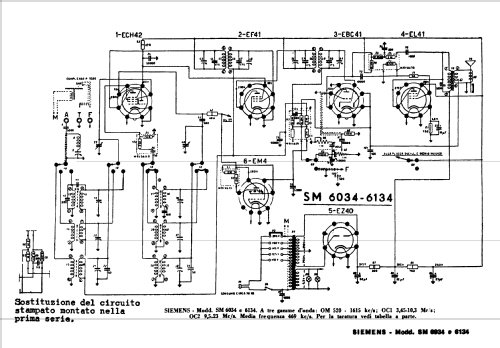

• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
