• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1947–1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5307

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11 U2410P

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

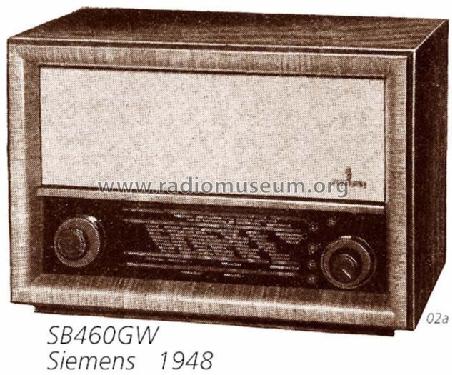

• Model: Super SB460GW - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 256 x 236 mm / 14.6 x 10.1 x 9.3 inch

• Notes
• oder UB2500; Bln

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Source of data
• Das Rundfunk-Jahr 1948/49 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk Nr. 30 von 1948

• Mentioned in
• Funkschau (4710)

• Literature/Schematics (1)
• Funk-Technik (FT) (3/1947 S. 12 f. und 5/1947 S. 6)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
