Superhet 74GW (5/4)

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5350

• Picture
• Schematics

Previous Next

Previous Next

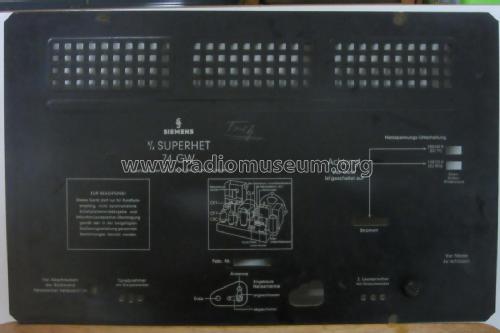

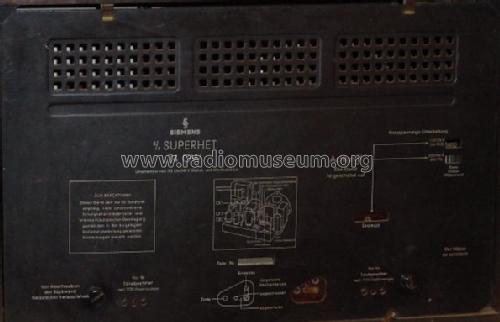

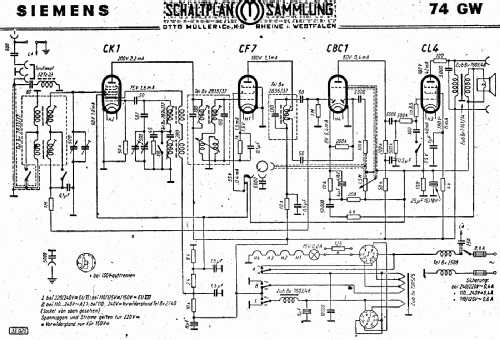

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

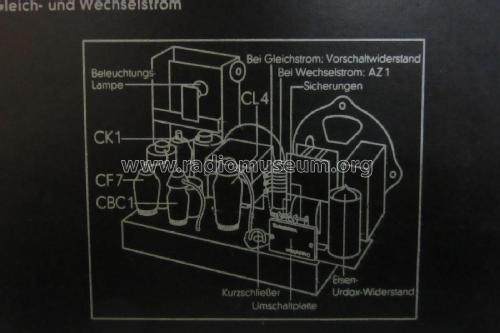

• Valves / Tubes
• CK1 CF7 CBC1 CL4 optional AZ1 Ks1320 or EUVI

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Superhet 74GW - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 360 x 300 mm / 20.5 x 14.2 x 11.8 inch

• Notes

• Variable Bandbreite. Skalen-/LS-Rahmen in Holz- oder Messing-Ausführung

• Price in first year of sale
• 249.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
