Siemens & Halske: Tosca [Radio] ID = 1295728 857x605

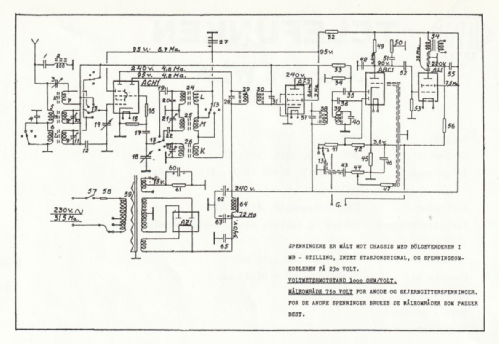

Select picture or schematic to display from thumbnails on the right and click for download.
For model Tosca, Siemens & Halske Norsk Aktieselskab; Oslo:
From my data blade from The Norwegian Radio History Society
|
|
Year:
1938
|
Category: Broadcast Receiver - or past WW2 Tuner |
Valves / Tubes |
5:
ACH1 AF3 ABC1 AL1 AZ1
|
schematic requested |
Main principle |
Superheterodyne (common)
|
Wave bands |
Broadcast, Long Wave and Short Wave. |
Details |
|
Power type and voltage |
Alternating Current supply (AC) / 120; 150; 230 Volt |
Loudspeaker |
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch |
Power out |
|
from Radiomuseum.org |
Model: Tosca - Siemens & Halske Norsk |
Material |
Wooden case |
Shape |
Tablemodel, with any shape - general. |
Dimensions (WHD) |
520 x 290 x 240 mm / 20.5 x 11.4 x 9.4 inch |
Price in first year of sale |
219.00 NKr |
Mentioned in |
The Norwegian Historical Radio Society |
Model page created by Ernst Rykkje. See "Data change" for further contributors.
