• Year
  • 1962
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 120027

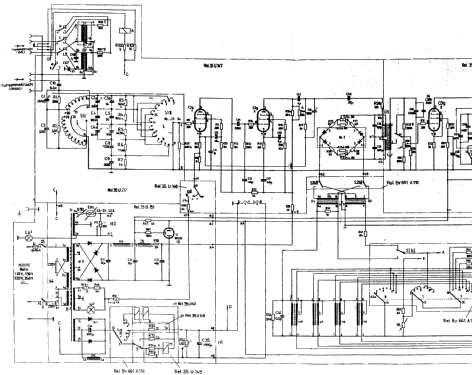

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Überlagerungsempfänger Rel 3 U 420c - Siemens & Halske, -Schuckert
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 558 x 324 x 300 mm / 22 x 12.8 x 11.8 inch
  • Notes
  • Selektives Voltmeter, 30 Hz bis 1 MHz in 8 Bereichen. Anzeige 1n 9 Bereichen bei Vollausschlag: 100µV bis 1V. Kleinste ablesbare Spannung 10µV (im untersten Frequenzbereich zehnfach).
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Überlagerungsempfänger is part of the collections of the following members.

 Forum

Forum contributions about this model: Siemens & Halske, -: Überlagerungsempfänger Rel 3 U 420c

Threads: 1 | Posts: 4

Suche den Schaltplan zu diesem Längstwellenempfänger. Wer - vielleicht außerhalb von RM.org - könnte Näheres über solche kommerziellen/militärischen Siemens-Geräte wissen ?

Berthold Bosch

Berthold Bosch † 13.2.19, 31.Oct.08

Weitere Posts (4) zu diesem Thema.
