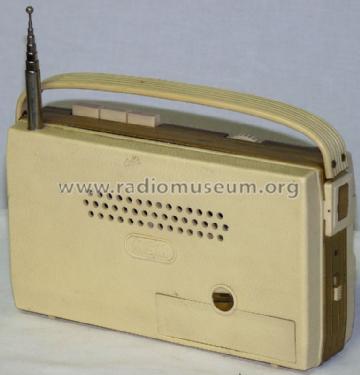

Siemens-Austria WSW;: UKW-Transetta 131.621C elfenbein [Radio] ID = 438795 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Transetta 131.621C elfenbein, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AF106 OC615 or. AF115 OC614 or. AF116 OC613 or. AF117 AF105 or. AF116 AF105 or. AF126 AF105 or. AF126 TF65 or. OC75 TF65 or. OC75 OC604spez or. AC120 OC604spez or. AC120
Main principle Superheterodyne (common); ZF/IF 460/10800 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.38 W (max.)
from Radiomuseum.org Model: UKW-Transetta 131.621C elfenbein - Siemens-Austria WSW; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 190 x 115 x 55 mm / 7.5 x 4.5 x 2.2 inch
Notes

Abgestimmte HF- Vorstufe bei Mittelwelle, Vierfachfilter im AM- ZF- Teil.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 1'585.00 ATS
Source of data -- Original-techn. papers.
Mentioned in RADIOBOTE, Österr. (Heft 51/2014, S.16 ff, Gerätebeschreibung)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
