257U (S257U S 257 U))

Siera; Belgien

Data

Forum

Pictures

Collections

Country
Belgium

Manufacturer / Brand
Siera; Belgien

Year
1950

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
73741

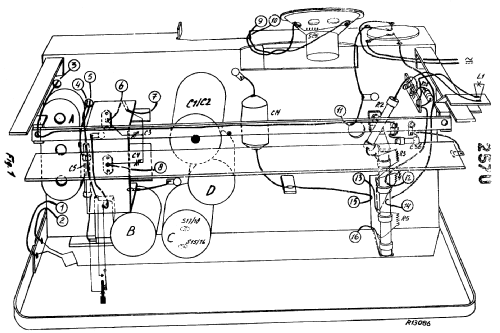

Schematics

257U ); Siera; Belgien (ID = 306201) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306202) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306196) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306197) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306198) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306200) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306191) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306192) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306193) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306194) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306195) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 306190) Radio — Siera; Belgien 257U ) (3)

257U ); Siera; Belgien (ID = 331266) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 553902) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 553903) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 72693) Radio — Siera; Belgien 257U ) (1)

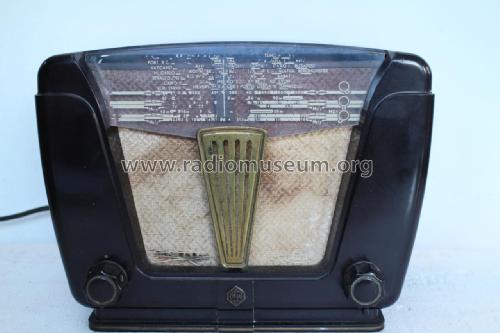

Front

257U ); Siera; Belgien (ID = 91763) Radio — Siera; Belgien 257U ) (1)

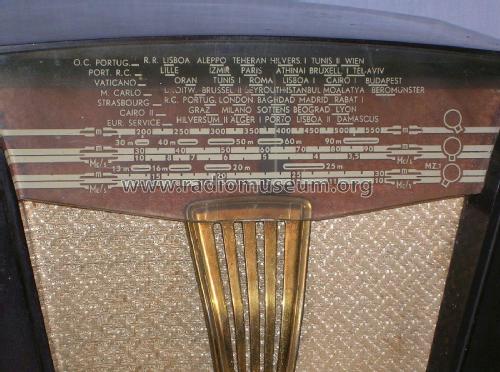

Dial glass written in Portuguese language

257U ); Siera; Belgien (ID = 800989) Radio — Siera; Belgien 257U ) (1)
My own collection

257U ); Siera; Belgien (ID = 1763226) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 1763228) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 1763231) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 2848498) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 2848500) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 2848501) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 2848502) Radio — Siera; Belgien 257U ) (1)

257U ); Siera; Belgien (ID = 2848503) Radio — Siera; Belgien 257U ) (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
UCH42 UAF42 UBC41 UL41 UY41

Main principle
Superheterodyne (common); ZF/IF 452 kHz

Wave bands
Broadcast plus 2 Short Wave bands.

Power type and voltage
AC/DC-set / 110/220 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

Material
Bakelite case

from Radiomuseum.org
Model: 257U ) - Siera; Belgien

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
272 x 205 x 160 mm / 10.7 x 8.1 x 6.3 inch

Net weight (2.2 lb = 1 kg)
3.2 kg / 7 lb 0.8 oz (7.048 lb)

Literature/Schematics (1)
-- Schematic

Author
Model page created by Mario Coelho. See "Data change" for further contributors.
