S56U -19

S56U -19; Siera; Eindhoven NL (ID = 418758) Radio S56U -19; Siera; Eindhoven NL (ID = 1938546) Radio
S56U -19; Siera; Eindhoven NL (ID = 1938547) Radio S56U -19; Siera; Eindhoven NL (ID = 1938612) Radio
S56U -19; Siera; Eindhoven NL (ID = 1938615) Radio
Use red slider bar for more.
S56U -19; Siera; Eindhoven NL (ID = 418758) Radio
Siera; Eindhoven NL: S56U -19 [Radio] ID = 418758 600x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model S56U -19, Siera; Eindhoven (NL)

Country:  Netherlands
Manufacturer / Brand:  Siera; Eindhoven (NL)
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner

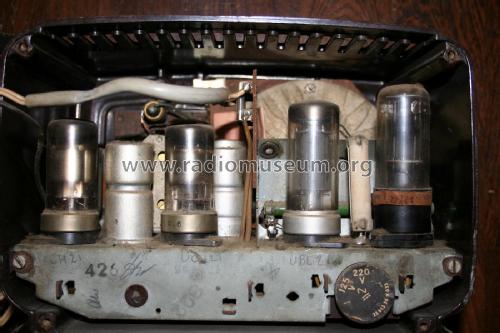

Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: S56U -19 - Siera; Eindhoven NL

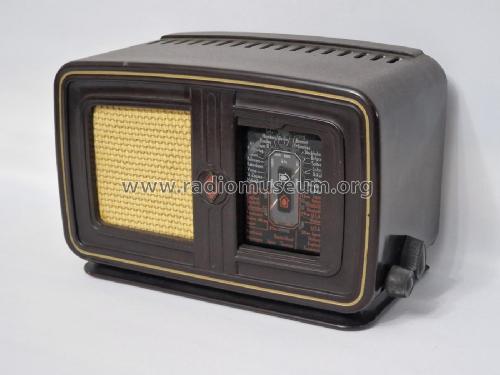

Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 210 x 170 x 140 mm / 8.3 x 6.7 x 5.5 inch
Notes
Tuning scale light bulb type: Z10 neon.
Loudspeaker Philips type 9668. No connectors for second loudspeaker or pick-up.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)

Model page created by Dirk Bladt. See "Data change" for further contributors.
