SA6006AB
Use red slider bar for more.
Siera; Eindhoven NL: SA6006AB [Radio] ID = 2046902 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1955 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: DF96 DK92 DF96 DAF96 DM71 DL94 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Tr.Gl.=Metal-rectif. |
| Main principle | Superhet with RF-stage |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |

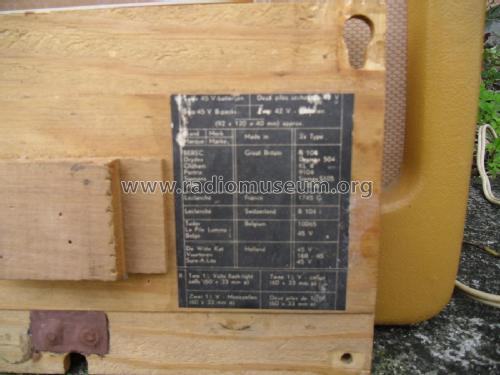

| Power type and voltage | Line / Batteries (any type) / 110; 125; 220 / 1,5 & 2 x 45 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: SA6006AB - Siera; Eindhoven NL |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 285 x 235 x 154 mm / 11.2 x 9.3 x 6.1 inch |
| Notes | See also the Belgian model Siera S6006A/B with different tube line-up. |
| Net weight (2.2 lb = 1 kg) | 3.1 kg / 6 lb 13.3 oz (6.828 lb) |
Model page created by Manuel Albano Neves. See "Data change" for further contributors.
