S145A

S145A; Siera; Belgien (ID = 1014945) Radio

S145A; Siera; Belgien (ID = 1926206) Radio

S145A; Siera; Belgien (ID = 1926207) Radio

S145A; Siera; Belgien (ID = 1926208) Radio

S145A; Siera; Belgien (ID = 1926209) Radio

S145A; Siera; Belgien (ID = 1926210) Radio

S145A; Siera; Belgien (ID = 1926211) Radio

S145A; Siera; Belgien (ID = 1926212) Radio

S145A; Siera; Belgien (ID = 1926213) Radio

S145A; Siera; Belgien (ID = 1926214) Radio
S145A; Siera; Belgien (ID = 1051586) Radio
Use red slider bar for more.
S145A; Siera; Belgien (ID = 1051586) Radio
Siera; Belgien: S145A [Radio] ID = 1051586 743x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model S145A, Siera; Belgien:

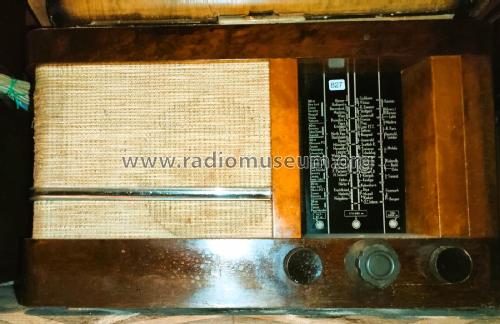

Bild aus Prospekt.

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH4 UF9 UBL1 UY1
Main principle Superheterodyne (common); ZF/IF 473 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: S145A - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 310 x 210 mm / 20.9 x 12.2 x 8.3 inch
Notes

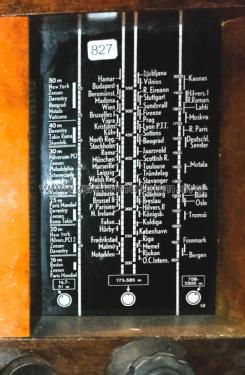

3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 186 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulb type: 8095D (19V, 90mA).
Loudspeaker Philips type 9646. No connectors for external loudspeaker or pick-up.
This model is comparable with NSF H140ANSF H142ANSF H160AMediator M142AMediator M160A and Mediator M160B.

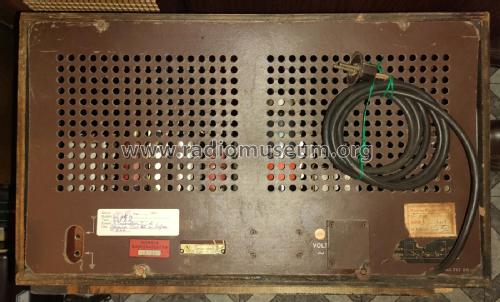

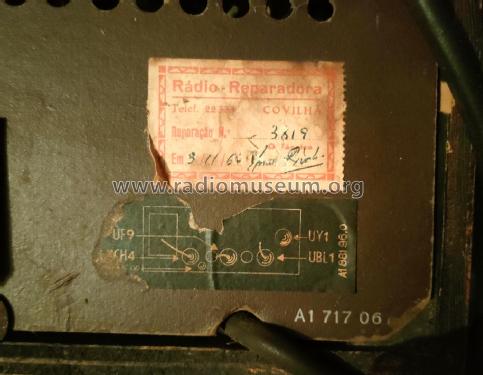

The wiring makes use of the internal connections of the rectifier tube UY1.

Chassis like S141A but S145A has a tone control.

Attention: the unit contains an auto-transformer - mains connected to the chassis !

Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Price in first year of sale 129.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman

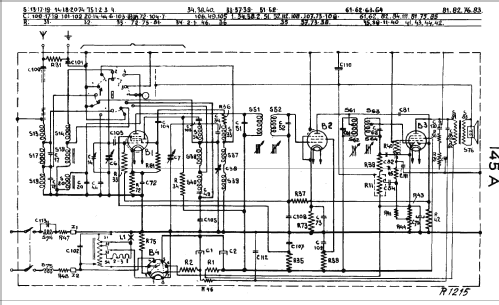

Literature/Schematics (1) -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.
