S381B05

S381B05; Siera; Belgien (ID = 475619) Radio S381B05; Siera; Belgien (ID = 475624) Radio
S381B05; Siera; Belgien (ID = 475623) Radio S381B05; Siera; Belgien (ID = 476706) Radio
S381B05; Siera; Belgien (ID = 475621) Radio S381B05; Siera; Belgien (ID = 475622) Radio
S381B05; Siera; Belgien (ID = 475625) Radio S381B05; Siera; Belgien (ID = 475626) Radio
Use red slider bar for more.
S381B05; Siera; Belgien (ID = 475619) Radio
Siera; Belgien: S381B05 [Radio] ID = 475619 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model S381B05, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1953/1954 ? Category: Broadcast Receiver - or past WW2 Tuner

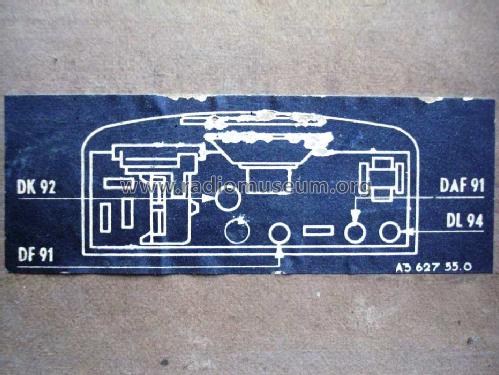

Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S381B05 - Siera; Belgien
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 290 x 190 x 147 mm / 11.4 x 7.5 x 5.8 inch
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Source of data - - Data from my own collection

Model page created by Bekir Ercaliskan. See "Data change" for further contributors.
