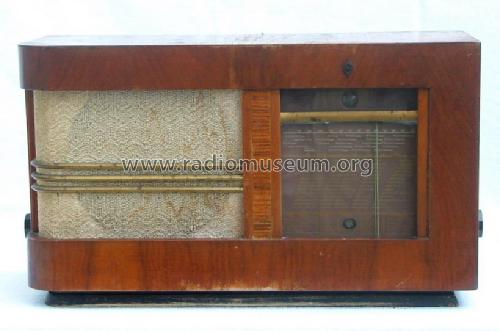

S51A; Siera; Eindhoven NL (ID = 302910) Radio
Siera; Eindhoven NL: S51A [Radio] ID = 302910 819x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model S51A, Siera; Eindhoven (NL):
Kaunas Lithuania

Country:  Netherlands
Manufacturer / Brand:  Siera; Eindhoven (NL)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF9 EBC3 EL3 EM1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out
from Radiomuseum.org Model: S51A - Siera; Eindhoven NL
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 300 x 235 mm / 20.5 x 11.8 x 9.3 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 186 - 585 m.
  • SW: 16,7 - 51 m.
Tuning scale light bulbs type: 2 x 8045 (6,3V, 320mA).
Loudspeaker Philips type 9636. Connectors for second loudspeaker and for pick-up. Tone control.
This model can be upgraded to an AC/DC set (see type S51U) by incorporating a vibrator unit (Price: 250 BFr).
This model is comparable with Jura TS51A and DUX V95.
Net weight (2.2 lb = 1 kg) 12.6 kg / 27 lb 12.1 oz (27.753 lb)
Price in first year of sale 135.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)
Literature/Schematics (1) -- Original prospect or advert (Siera Radio Modèles 1939)
Literature/Schematics (2) -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.
