For model S96A -20, Siera; Belgien:
private library

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBL1 AZ1 EFM1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: S96A -20 - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 524 x 400 x 227 mm / 20.6 x 15.7 x 8.9 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 175 - 585 m.
  • SW: 13,8 - 51 m.
Tuning scale light bulbs type: 2 x 8045D (6,3V, 320mA).
Loudspeaker Philips type 9636. Connectors for second low impedance loudspeaker and for pick-up. AF feedback circuitry to reduce distortion. The pentode in the magic-eye serves as AF pre-amplifier.

This model was intended for the Belgian market and is comparable with Jura J96A and Fenno Seura V-41 S96A.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 1'850.00 BEF
Mentioned in Manuel de la Radio 1940, van Cortenberghe

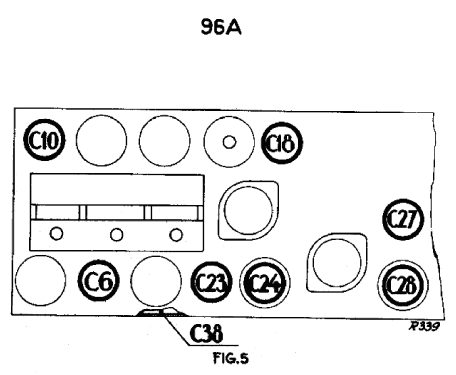

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by Dirk Bladt. See "Data change" for further contributors.
