SA2006U

SA2006U; Siera; Belgien (ID = 167481) Radio SA2006U; Siera; Belgien (ID = 167482) Radio

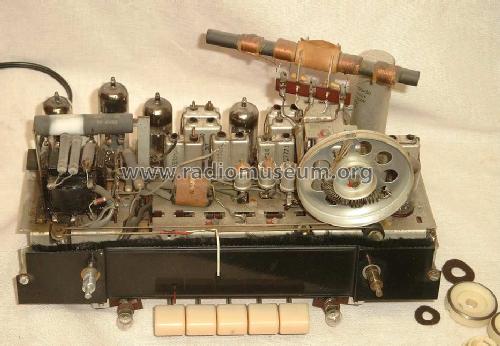

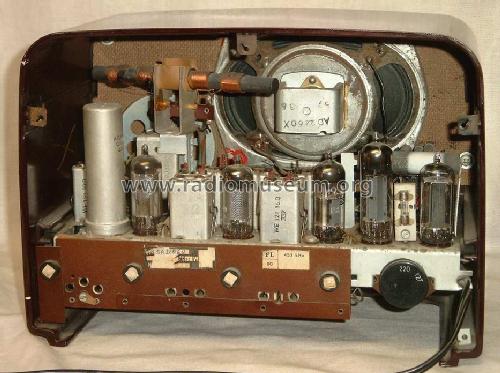

SA2006U; Siera; Belgien (ID = 167483) Radio SA2006U; Siera; Belgien (ID = 167484) Radio
SA2006U; Siera; Belgien (ID = 167485) Radio
Use red slider bar for more.
SA2006U; Siera; Belgien (ID = 167481) Radio
Siera; Belgien: SA2006U [Radio] ID = 167481 933x686
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA2006U, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL84 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: SA2006U - Siera; Belgien
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 290 x 210 x 165 mm / 11.4 x 8.3 x 6.5 inch
Source of data - - Data from my own collection

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from Siera; Belgien
Here you find 432 models, 390 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
