• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245103

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 0.8 W (0.9 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

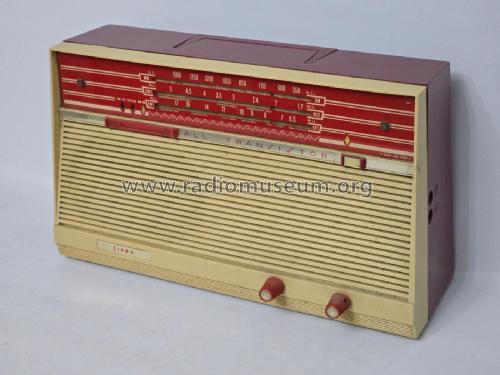

• Model: SA3254T - Siera; Belgien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 320 x 195 x 115 mm / 12.6 x 7.7 x 4.5 inch

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 1,500.00 pte

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
