• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105763

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• DK96 DF96 DF96

• Number of Transistors
• 3

• Semiconductors
• OC71 OC72 OC72 OA85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage

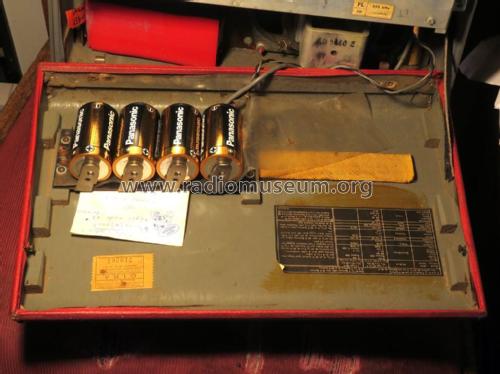

• Dry Batteries / 1,5 & 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: SA6007BT - Siera; Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 230 x 130 mm / 12.6 x 9.1 x 5.1 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.

• Other Models

• Here you find 452 models, 413 with images and 181 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
