SA-3073

Siera; Belgien

  • Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 173865

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle

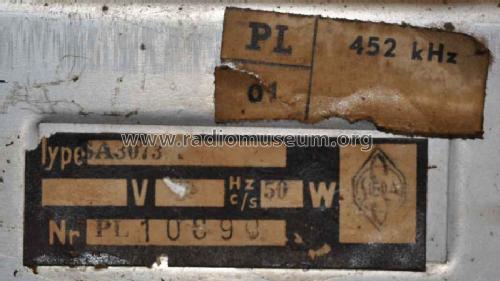

  • Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 90/220 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 10 cm = 3.9 inch
  • Material
  • Various materials
  • from Radiomuseum.org

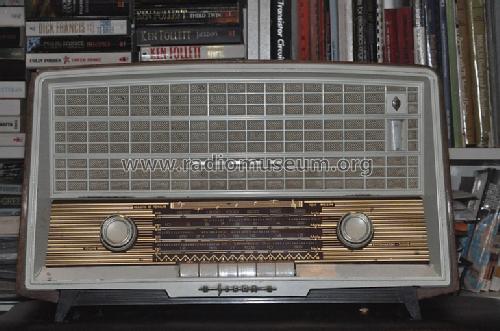

  • Model: SA-3073 - Siera; Belgien
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Appears to be identical to the Philips B4X85A. Wooden case, moulded plastic front. Speakers are 90 mm round plus 100 x 150 mm oval.
  • Mentioned in
  • - - Data from my own collection
  • Author
  • Model page created by Jim Greig. See "Data change" for further contributors.
