• Country
• Italy

• Manufacturer / Brand
• Sinfonic Radio; Padova

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113463

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECH81 ECL80

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

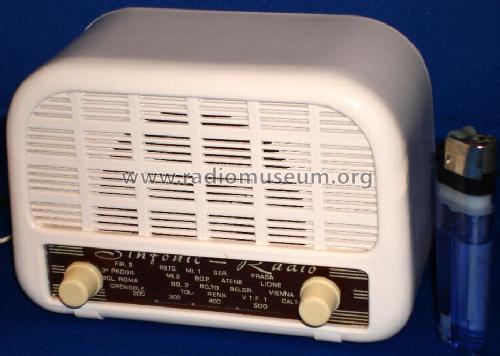

• Model: Ercolino - Sinfonic Radio; Padova

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 120 x 100 x 80 mm / 4.7 x 3.9 x 3.1 inch

• Notes
• Radio miniatura a 2 valvole + raddrizzatore. Mobile in diverse varianti di colore (bianco, amaranto, verde scuro e grigio). Guida Pratica AR V indica anno di produzione 1950, ma la valvola ECH81 è entrata in produzione uso solo dal 1952, e pertanto l'anno è successivo a quanto indicato.

  Miniature superhet, featuring two tubes and one rectifier. Several colour variants (white, amaranthine, dark green, grey). According to the book Guida Pratica AR V, the radio was made in 1950 - this must be wrong, since ECH81 was introduced in 1952.

• Source of data
• Guida Pratica Antique Radio V (2003)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
