S 23V

S 23V; Skantic Radio AB, (ID = 2285499) Radio S 23V; Skantic Radio AB, (ID = 2285500) Radio
S 23V; Skantic Radio AB, (ID = 2285501) Radio S 23V; Skantic Radio AB, (ID = 2285502) Radio
S 23V; Skantic Radio AB, (ID = 2285503) Radio S 23V; Skantic Radio AB, (ID = 2285504) Radio
S 23V; Skantic Radio AB, (ID = 2285533) Radio S 23V; Skantic Radio AB, (ID = 2309364) Radio
Use red slider bar for more.

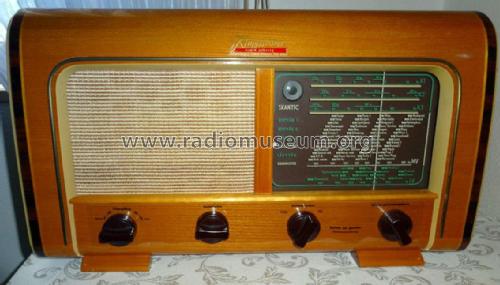

S 23V; Skantic Radio AB, (ID = 2285499) Radio
Skantic Radio AB,: S 23V [Radio] ID = 2285499 1133x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model S 23V, Skantic Radio AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Skantic Radio AB, Stockholm
alternative name

Skandinaviska Radio AB
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner

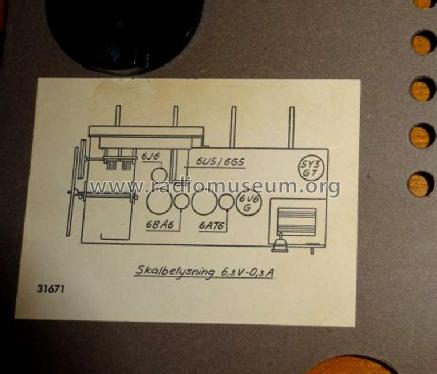

Valves / Tubes 6: 6J6 6BA6 6AT6 6V6G 6U5 or 6G5 5Y3GT
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)

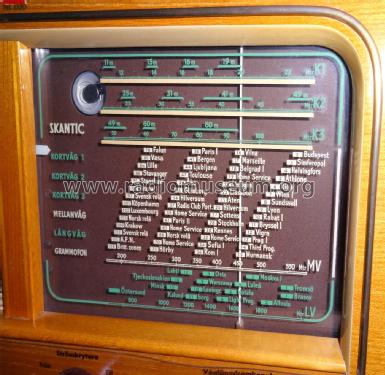

Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S 23V - Skantic Radio AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 300 x 240 mm / 20.5 x 11.8 x 9.4 inch

Model page created by Carlos Silva Pereira. See "Data change" for further contributors.



All listed radios etc. from Skantic Radio AB, Stockholm
Here you find 61 models, 59 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
