• Country
• Italy

• Manufacturer / Brand
• SNT (Società Negro e Torretta); Milano

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115830

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK96 DF96 DAF96 DL96

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110; 125; 140; 160; 220 / 1,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

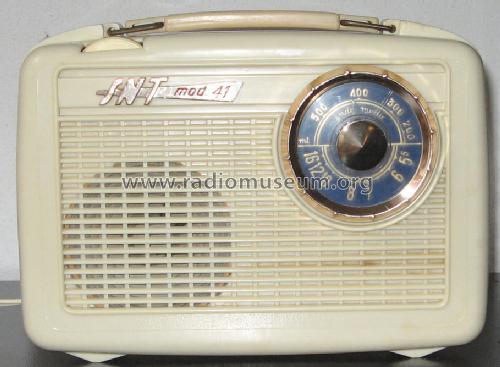

• Model: 41 - SNT Società Negro e Torretta;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 160 x 70 mm / 9.1 x 6.3 x 2.8 inch

• Notes

• Custodia in similpelle.
  Leatherette carrying bag.

  Prodotta in vari colori.

  Rettificatore al Selenio 125 V 80 mA.

  Da questo telaio e' derivato il modello a transistor 712.

  Prodotta anche per la Vis Radio con il nome Florida.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 18,000.00 lire

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 24 models, 16 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SNT (Società Negro e Torretta); Milano
