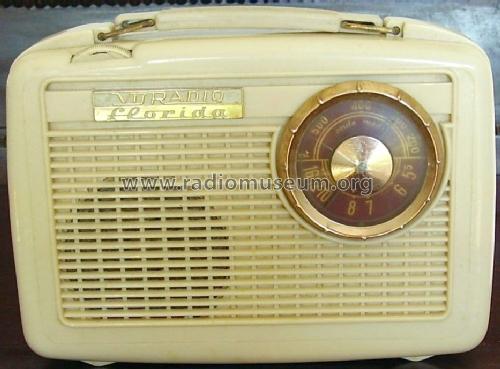

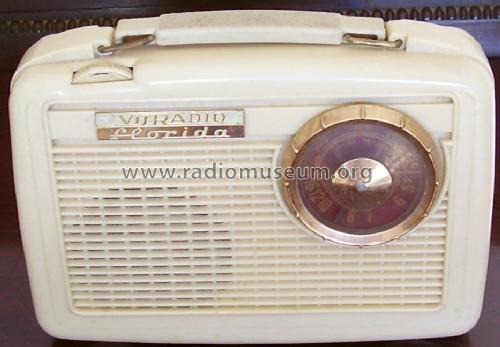

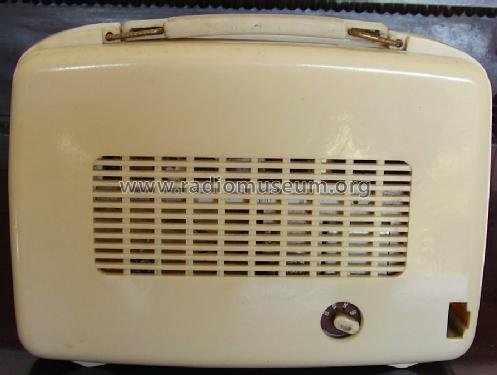

Florida
VIS Radio; Napoli
- Country
- Italy
- Manufacturer / Brand
- VIS Radio; Napoli
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136282
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-220 1,5 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Florida - VIS Radio; Napoli
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 240 x 180 x 70 mm / 9.4 x 7.1 x 2.8 inch
- Notes
-
AC or battery set; AC selected when power cord is inserted. Ferrite antenna.
Prodotta dalla SNT, è simile al modello 41.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
