512W

512W; Sobell Ind., Slough (ID = 547048) Radio

512W; Sobell Ind., Slough (ID = 547049) Radio

512W; Sobell Ind., Slough (ID = 1019498) Radio

512W; Sobell Ind., Slough (ID = 1019500) Radio

512W; Sobell Ind., Slough (ID = 1019501) Radio

512W; Sobell Ind., Slough (ID = 1019502) Radio
512W; Sobell Ind., Slough (ID = 1466536) Radio 512W; Sobell Ind., Slough (ID = 2146238) Radio
Use red slider bar for more.

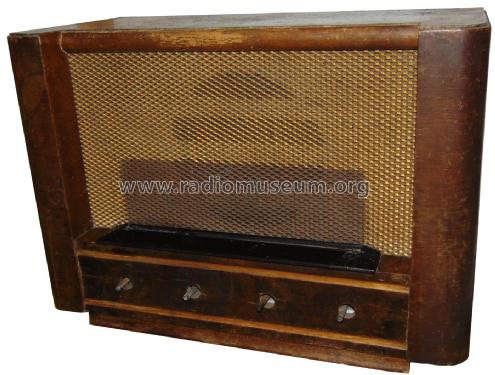

512W; Sobell Ind., Slough (ID = 1466536) Radio
Sobell Ind., Slough: 512W [Radio] ID = 1466536 933x771
Select picture or schematic to display from thumbnails on the right and click for download.
For model 512W, Sobell Ind., Slough:
Enlarged and edited from ebay 111080570274 pwood13660

Country:  Great Britain (UK)
Manufacturer / Brand:  Sobell Ind., Slough
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EBC41 EL41 EZ40
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 512W - Sobell Ind., Slough
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 485 x 325 x 225 mm / 19.1 x 12.8 x 8.9 inch
Notes Walnut cabinet. See also the 512P model in a bakelite cabinet.
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1068)

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Sobell Ind., Slough
Here you find 111 models, 52 with images and 89 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
