• Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 102136

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz

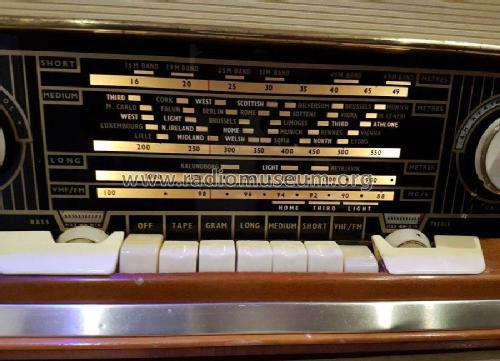

  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 190-250 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.

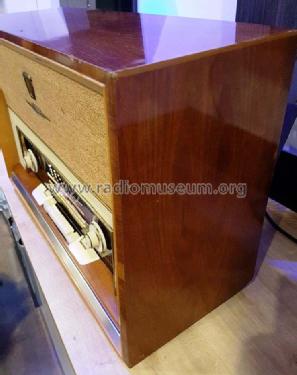

  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RS402 - Sobell Ind., Slough
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
