S303BT

S303BT; Sobell Ind., Slough (ID = 598316) Radio

S303BT; Sobell Ind., Slough (ID = 598317) Radio

S303BT; Sobell Ind., Slough (ID = 1001177) Radio

S303BT; Sobell Ind., Slough (ID = 1001178) Radio
S303BT; Sobell Ind., Slough (ID = 383514) Radio S303BT; Sobell Ind., Slough (ID = 383517) Radio
S303BT; Sobell Ind., Slough (ID = 759849) Radio S303BT; Sobell Ind., Slough (ID = 759851) Radio
S303BT; Sobell Ind., Slough (ID = 759852) Radio S303BT; Sobell Ind., Slough (ID = 759853) Radio
S303BT; Sobell Ind., Slough (ID = 759854) Radio S303BT; Sobell Ind., Slough (ID = 759855) Radio
S303BT; Sobell Ind., Slough (ID = 2011424) Radio S303BT; Sobell Ind., Slough (ID = 2011425) Radio
Use red slider bar for more.
S303BT; Sobell Ind., Slough (ID = 383514) Radio
Sobell Ind., Slough: S303BT [Radio] ID = 383514 930x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model S303BT, Sobell Ind., Slough:

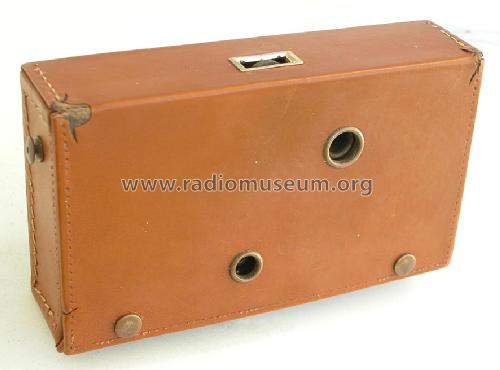

My 1960 Sobell S303BT 7 transistor MW/LW pocket radio in its leather case with brass trim.

Country:  Great Britain (UK)
Manufacturer / Brand:  Sobell Ind., Slough
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 or. GET874 OC45 or. GET873 OC45 or. GET873 OC71 OC81 or. GET114 OC81 or. GET114 OC81 or. GET114
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: S303BT - Sobell Ind., Slough
Material Various materials
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 6.75 x 4 x 1.75 inch / 171 x 102 x 44 mm
Notes Transistors: OC44, 2x OC45, OC71, OC81D, 2x OC81. Integral leather case and supplied with short and long leather straps. Sockets on back for external aerial and earphone. Released November 1960, price £10 6s 8d plus purchase tax. Identical to the McMichael model M103BT.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.



All listed radios etc. from Sobell Ind., Slough
Here you find 111 models, 56 with images and 90 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
