- Country
- Belgium
- Manufacturer / Brand
- SOCORA; Bruxelles
- Year
- 1957
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 261021
Q = catalogue radio Bourse 1957

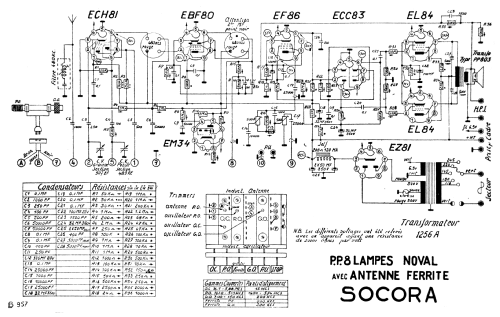

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: 957 - SOCORA; Bruxelles
- Shape
- Chassis only or for «building in»
- Notes
-
Sold as kit
- Price in first year of sale
- 2,230.00 BEF
- Mentioned in
- Catalogue Radio Bourse 1957
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 88 models, 80 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
