Amplificateur Hi-Fi Ultra Lineaire 12W

Amplificateur Hi-Fi Ultra Lineaire 12W; SOCORA; Bruxelles (ID = 1425641) Ampl/Mixer
Amplificateur Hi-Fi Ultra Lineaire 12W; SOCORA; Bruxelles (ID = 1141929) Ampl/Mixer
Use red slider bar for more.
Amplificateur Hi-Fi Ultra Lineaire 12W; SOCORA; Bruxelles (ID = 1141929) Ampl/Mixer
SOCORA; Bruxelles: Amplificateur Hi-Fi Ultra Lineaire 12W [Ampl/Mixer] ID = 1141929 683x1091
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplificateur Hi-Fi Ultra Lineaire 12W, SOCORA; Bruxelles

Country:  Belgium
Manufacturer / Brand:  SOCORA; Bruxelles
Year: 1961/1962 Category: Audio Amplifier or -mixer
Valves / Tubes 7: EF86 ECC81 ECC83 ECC82 EL84 EL84 EZ81
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Amplificateur Hi-Fi Ultra Lineaire 12W - SOCORA; Bruxelles
Shape Tablemodel, with any shape - general.
Notes

Socora Amplificateur Hi-Fi Ultra Lineaire 12W;
Mono, inputs for radio/Xal/Mag pick-up/micro, five step disc record equalizer, loudness, controls for tone & master volume, 7 & 16 ohm out, assembled or kit version.

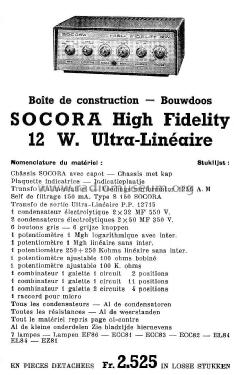

Price of 2525 Bfr. is for kit version.

Price in first year of sale 2'525.00 Bfr

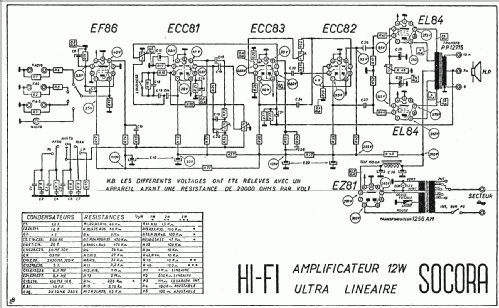

Source of data -- Schematic
Mentioned in Radio-Bourse 1961/1962

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from SOCORA; Bruxelles
Here you find 80 models, 71 with images and 37 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
