Amati E5015R

Amati E5015R; Sondyna AG; Zürich- (ID = 20454) Radio

Amati E5015R; Sondyna AG; Zürich- (ID = 20455) Radio
Amati E5015R; Sondyna AG; Zürich- (ID = 1336504) Radio Amati E5015R; Sondyna AG; Zürich- (ID = 1336505) Radio
Amati E5015R; Sondyna AG; Zürich- (ID = 1336764) Radio Amati E5015R; Sondyna AG; Zürich- (ID = 1336765) Radio
Amati E5015R; Sondyna AG; Zürich- (ID = 1336766) Radio Amati E5015R; Sondyna AG; Zürich- (ID = 1336767) Radio
Amati E5015R; Sondyna AG; Zürich- (ID = 1336768) Radio
Use red slider bar for more.
Amati E5015R; Sondyna AG; Zürich- (ID = 1336504) Radio
Sondyna AG; Zürich-: Amati E5015R [Radio] ID = 1336504 933x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amati E5015R, Sondyna AG; Zürich-Effretikon:
Gerät eines Sammlerkollegen

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1950–1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECH42 EF41 EAF42 ECC40 EM34 EL41 EL41 AZ31
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-255 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Amati E5015R - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 530 x 310 x 220 mm / 20.9 x 12.2 x 8.7 inch
Notes

5015 mit angeb.Rahmenantenne

Gleichrichterröhre AZ34 im Schema Druckfehler, richtig ist der Typ AZ31.

Price in first year of sale 575.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

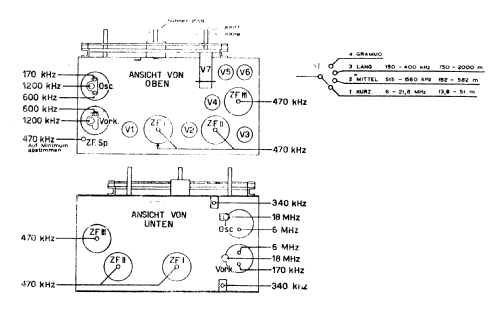

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.


All listed radios etc. from Sondyna AG; Zürich-Effretikon
