Troubadour 5415

Troubadour 5415; Sondyna AG; Zürich- (ID = 99743) Radio Troubadour 5415; Sondyna AG; Zürich- (ID = 99745) Radio

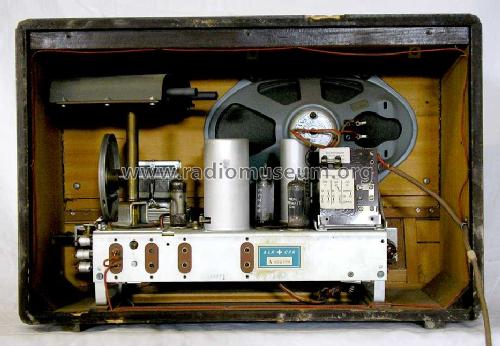

Troubadour 5415; Sondyna AG; Zürich- (ID = 99746) Radio Troubadour 5415; Sondyna AG; Zürich- (ID = 99744) Radio
Troubadour 5415; Sondyna AG; Zürich- (ID = 1709693) Radio Troubadour 5415; Sondyna AG; Zürich- (ID = 1709694) Radio
Use red slider bar for more.
Troubadour 5415; Sondyna AG; Zürich- (ID = 99743) Radio
Sondyna AG; Zürich-: Troubadour 5415 [Radio] ID = 99743 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Troubadour 5415, Sondyna AG; Zürich-Effretikon:
Eigene Sammlung

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EAF42 EBC41 EL84 EM34 EZ80
Main principle Superheterodyne (common)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 125; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Troubadour 5415 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes ähnlich dem E5412 , drehbare Ferritantenne mit Aussparung in Rückwand, Hf-TR-Anschluss, Schalterposition für UKW.
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Martin Bösch. See "Data change" for further contributors.
