• Country
• Belgium

• Manufacturer / Brand
• Soniclair; Bruxelles

• Year
• 1941 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186869

• Number of Tubes
• 7

• Valves / Tubes
• 6C6 6B7 6D6 6A7 6G5 25L6 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

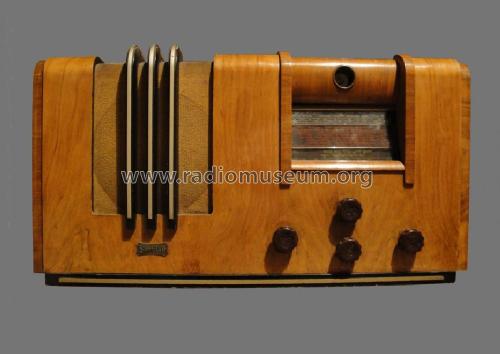

• Model: 95U - Soniclair; Bruxelles

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 340 x 290 mm / 24.8 x 13.4 x 11.4 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.

• Other Models

• Here you find 45 models, 34 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
