HD 6 Lux Automatic

HD 6 Lux Automatic ; Sonneclair, (ID = 2323721) Radio
Use red slider bar for more.
HD 6 Lux Automatic ; Sonneclair, (ID = 2323721) Radio

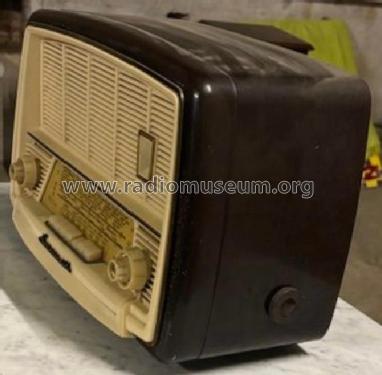

Sonneclair,: HD 6 Lux Automatic [Radio] ID = 2323721 900x554
Select picture or schematic to display from thumbnails on the right and click for download.
For model HD 6 Lux Automatic, Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge:
leboncoin.fr #1513344845 seller Léa

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBF80 EL84 EM80 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: HD 6 Lux Automatic - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 260 x 210 mm / 15.4 x 10.2 x 8.3 inch
Notes

4 gammes d'ondes dont 1 bande étalée (BE). Clavier 7 touches dont 2 stations préreglées Europe 1 et Luxembourg,

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Here you find 119 models, 101 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
