Perfection 702

Perfection 702; Sonora-Radio; Paris, (ID = 2505975) Radio Perfection 702; Sonora-Radio; Paris, (ID = 2505979) Radio
Use red slider bar for more.

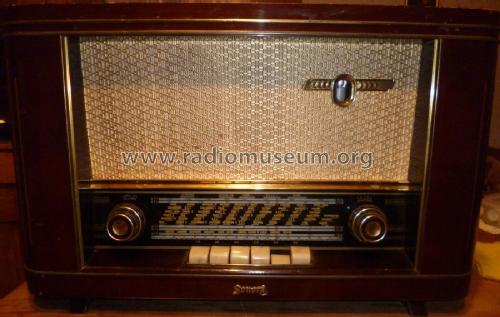

Perfection 702; Sonora-Radio; Paris, (ID = 2505975) Radio
Sonora-Radio; Paris,: Perfection 702 [Radio] ID = 2505975 669x609
Select picture or schematic to display from thumbnails on the right and click for download.
For model Perfection 702, Sonora-Radio; Paris, Puteaux

Country:  France
Manufacturer / Brand:  Sonora-Radio; Paris, Puteaux
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF89 ECH81 EF89 EBF80 EM80 EL84 EZ80
schematic requested
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Perfection 702 - Sonora-Radio; Paris, Puteaux
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 360 x 280 mm / 22.4 x 14.2 x 11 inch
Notes

Étage HF, cadre à air blindé incorporé orientable.

Price in first year of sale 39'950.00 FRF
Mentioned in -- Original prospect or advert (Toute la Radio, Oct. 1956)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
