DSR tuner DAR-1000ES

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944912) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944913) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944914) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944915) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944916) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944917) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944918) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944919) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944920) DIG/SAT

DSR tuner DAR-1000ES; Sony Corporation; (ID = 1944921) DIG/SAT
DSR tuner DAR-1000ES; Sony Corporation; (ID = 475884) DIG/SAT DSR tuner DAR-1000ES; Sony Corporation; (ID = 475891) DIG/SAT
DSR tuner DAR-1000ES; Sony Corporation; (ID = 475888) DIG/SAT DSR tuner DAR-1000ES; Sony Corporation; (ID = 475889) DIG/SAT
DSR tuner DAR-1000ES; Sony Corporation; (ID = 475890) DIG/SAT DSR tuner DAR-1000ES; Sony Corporation; (ID = 1427255) DIG/SAT
DSR tuner DAR-1000ES; Sony Corporation; (ID = 1427256) DIG/SAT DSR tuner DAR-1000ES; Sony Corporation; (ID = 1427257) DIG/SAT
DSR tuner DAR-1000ES; Sony Corporation; (ID = 1427258) DIG/SAT DSR tuner DAR-1000ES; Sony Corporation; (ID = 1943128) DIG/SAT
Use red slider bar for more.

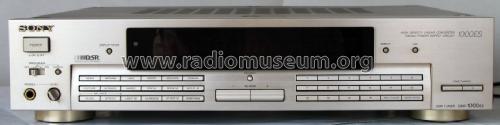

DSR tuner DAR-1000ES; Sony Corporation; (ID = 475884) DIG/SAT
Sony Corporation;: DSR tuner DAR-1000ES [DIG/SAT] ID = 475884 933x235
Select picture or schematic to display from thumbnails on the right and click for download.
For model DSR tuner DAR-1000ES, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1990 ? Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: DSR tuner DAR-1000ES - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 96 x 346 mm / 16.9 x 3.8 x 13.6 inch
Notes DSR Tuner, DAR-1000ES, High density linear converter, Radial Power Supply Circuit.
Inputs for cable (118 MHz) or satellite (1st IF from LNB).
Outputs: analogue and optical SP/DIF (sampling freq. 32 kHz).
Headphones output at the front side.
In Germany, the DSR system was ceased in January 1999.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
