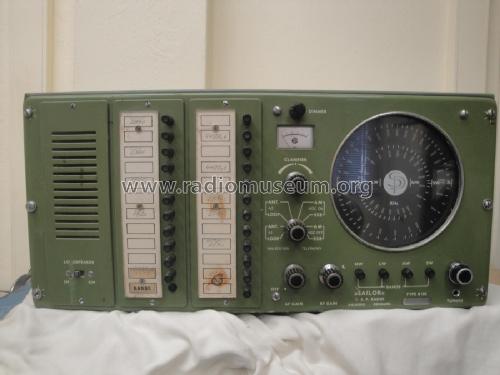

Sailor R105

Sailor R105; S.P. Radio A/S; (ID = 653249) Receiver-C

Sailor R105; S.P. Radio A/S; (ID = 653250) Receiver-C
Sailor R105; S.P. Radio A/S; (ID = 286443) Receiver-C Sailor R105; S.P. Radio A/S; (ID = 286444) Receiver-C

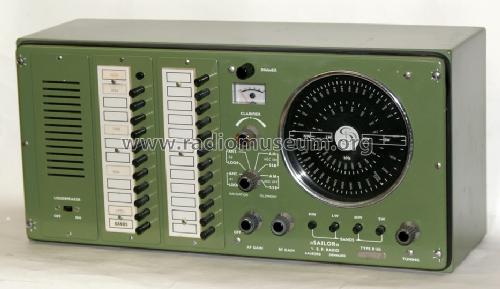

Sailor R105; S.P. Radio A/S; (ID = 703536) Receiver-C Sailor R105; S.P. Radio A/S; (ID = 965952) Receiver-C

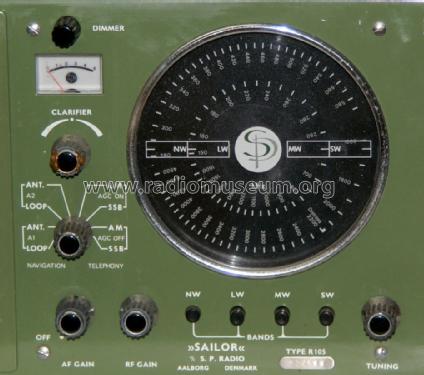

Sailor R105; S.P. Radio A/S; (ID = 965953) Receiver-C Sailor R105; S.P. Radio A/S; (ID = 965954) Receiver-C

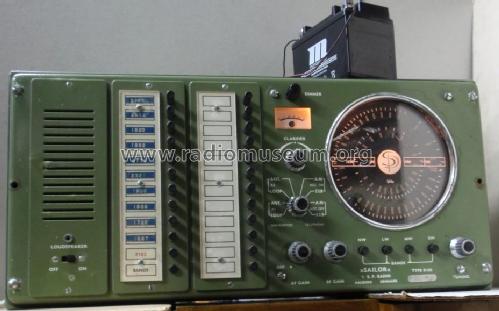

Sailor R105; S.P. Radio A/S; (ID = 1831111) Receiver-C
Use red slider bar for more.
Sailor R105; S.P. Radio A/S; (ID = 286443) Receiver-C
S.P. Radio A/S;: Sailor R105 [Receiver-C] ID = 286443 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sailor R105, S.P. Radio A/S; Aalborg

Country:  Denmark
Manufacturer / Brand:  S.P. Radio A/S; Aalborg
Brand

Sailor
Year: 1972 ? Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 600 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 110/220 or 12/24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Sailor R105 - S.P. Radio A/S; Aalborg
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 492 x 232 x 220 mm / 19.4 x 9.1 x 8.7 inch
Notes Marine Receiver. LW:170-350 kHz, NW: 300-535 kHz, MW: 700-1650 kHz, SW: 1600-4200 kHz. 23 crystal controlled frequencies.
Modular construction, basic set R103, two crystal controlled fixed frequency modules, one internal speaker module.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Collectors' prices
Mentioned in -- Original-techn. papers.

Model page created by Greger Wärnå. See "Data change" for further contributors.
