Radiola Grandett 1538V
Use red slider bar for more.

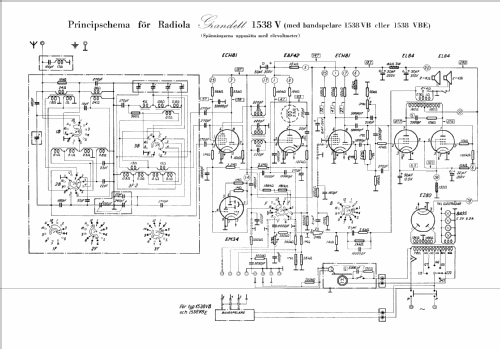

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola | ||||
|---|---|---|---|---|---|
| Year: 1953 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECH81 EAF42 ECH81 EL84 EM34 EL84 EZ80 |
| Main principle | Superheterodyne (common); ZF/IF 460 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and more than two Short Wave bands. |
| Details | Record Player (perh.Changer) |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 140; 155; 220; 245 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | 8 W (unknown quality) |
| from Radiomuseum.org | Model: Radiola Grandett 1538V - SRA Svenska Radioaktiebolaget; |
| Material | Wooden case |
| Shape | Console, Lowboy (legs < 50 %). |
| Dimensions (WHD) | 900 x 900 x 413 mm / 35.4 x 35.4 x 16.3 inch |
| Notes | Same as 1538VB and 1538VBE, but without tape recorder. |
| Net weight (2.2 lb = 1 kg) | 40 kg / 88 lb 1.7 oz (88.106 lb) |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Peter Olausson. See "Data change" for further contributors.
