• Country
• Sweden

• Manufacturer / Brand
• SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195278

• • Brand: Radiola

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7G 6J8G 6K7G 6Q7G 6UG5G 25L6G 25Z6G

• Main principle
• Superhet with RF-stage; ZF/IF 467 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 120; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Power out
• 1.2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

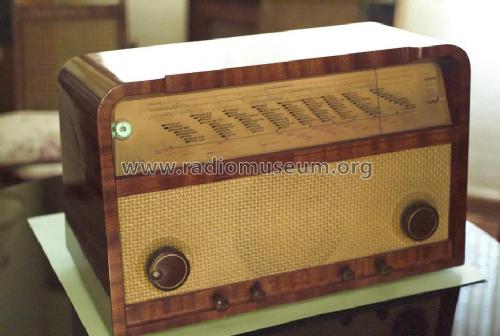

• Model: Radiola 1445LV - SR, Svenska Radioaktiebolaget

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 390 x 290 mm / 23.6 x 15.4 x 11.4 inch

• Notes

• Three SW-bands. Switch for local station.

  Variable selectivity in one IF-transformer.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Luis Garcia Echegoyen. See "Data change" for further contributors.
