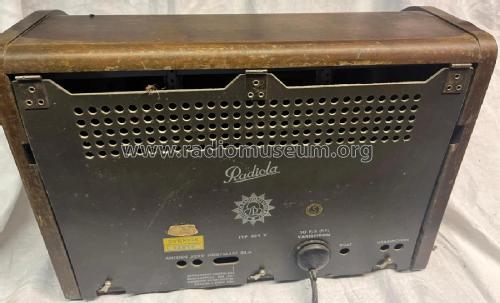

Radiola 404 V

Radiola 404 V; SRA Svenska (ID = 1619928) Radio

Radiola 404 V; SRA Svenska (ID = 1619929) Radio
Radiola 404 V; SRA Svenska (ID = 2471560) Radio
Use red slider bar for more.
Radiola 404 V; SRA Svenska (ID = 2471560) Radio
SRA Svenska: Radiola 404 V [Radio] ID = 2471560 932x742
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 404 V, SRA Svenska Radioaktiebolaget; Stockholm:
Manufacturer´s brochure 1940.

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH3 EF9 EBC3 EM4 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 144 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Radiola 404 V - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 327 x 262 mm / 18.5 x 12.9 x 10.3 inch
Net weight (2.2 lb = 1 kg) 12.7 kg / 27 lb 15.6 oz (27.974 lb)
Price in first year of sale 290.00 SEK
Source of data - - Manufacturers Literature

Model page created by Anders Söderström. See "Data change" for further contributors.
