Radiola 425 LV

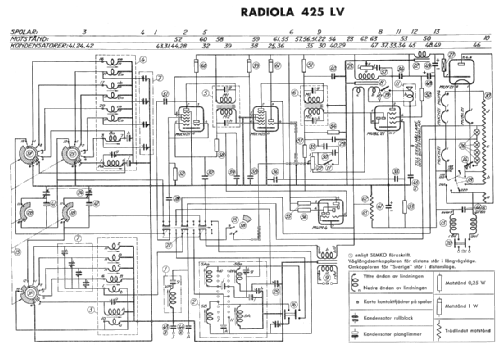

Radiola 425 LV; SRA Svenska (ID = 1623674) Radio

Radiola 425 LV; SRA Svenska (ID = 1623675) Radio
Use red slider bar for more.
Radiola 425 LV; SRA Svenska (ID = 1623674) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UCH21 UBL21 UY21 UM4
Main principle Superheterodyne (common); ZF/IF 467 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Radiola 425 LV - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 334 x 270 mm / 20.1 x 13.1 x 10.6 inch
Notes

3 shortswave bands: 13,6 - 21,4, 21,4 - 33,3 and 33,3 - 51,7

Switch for local station.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 431.00 SEK
Source of data - - Manufacturers Literature

Model page created by Anders Söderström. See "Data change" for further contributors.
