Radiola 485LV
SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm
- Country
- Sweden
- Manufacturer / Brand
- SR, Svenska Radioaktiebolaget (SRA, Radiola); Stockholm
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248872
-
- Brand: Radiola
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 485LV - SR, Svenska Radioaktiebolaget
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 526 x 350 x 265 mm / 20.7 x 13.8 x 10.4 inch
- Notes
-
Five SW-bands 15,5-194 m. Variable bandwidth. Switch for local station.

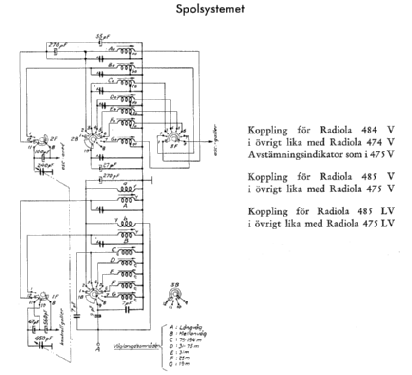

Except for coil system the circuit diagram is the same as for 475LV.
- Net weight (2.2 lb = 1 kg)
- 10.7 kg / 23 lb 9.1 oz (23.568 lb)
- Author
- Model page created by Lennart Nilsson. See "Data change" for further contributors.
