Elettra 1° Ricevitore a transistor

SRE - Scuola Radio Elettra, Torino

  • Year
  • 1966 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 106281

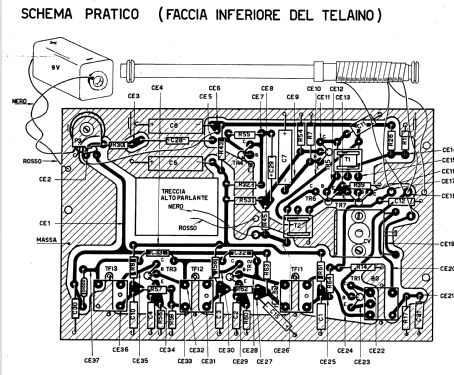

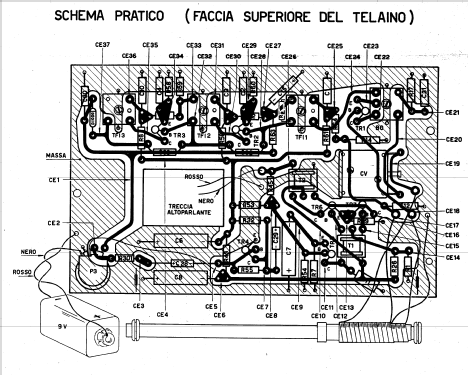

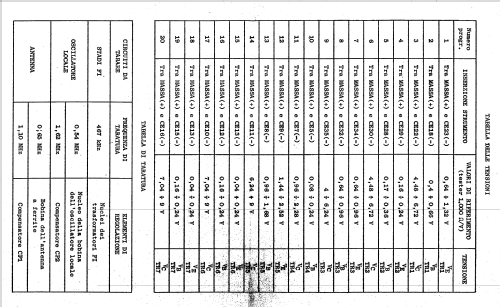

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 467 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Elettra 1° Ricevitore a transistor - SRE - Scuola Radio Elettra,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 180 x 115 x 52 mm / 7.1 x 4.5 x 2 inch
  • Notes
  • Copertura totale onde medie da 520-1650 KHz. Stadio di uscita in controfase.

  • Mentioned in
  • -- Original-techn. papers.
