SR-H 100

SR-H 100; Standard Radio Corp. (ID = 2321350) Radio SR-H 100; Standard Radio Corp. (ID = 802030) Radio
SR-H 100; Standard Radio Corp. (ID = 808349) Radio SR-H 100; Standard Radio Corp. (ID = 808350) Radio
SR-H 100; Standard Radio Corp. (ID = 808351) Radio SR-H 100; Standard Radio Corp. (ID = 2321349) Radio
SR-H 100; Standard Radio Corp. (ID = 2321351) Radio SR-H 100; Standard Radio Corp. (ID = 2321352) Radio
SR-H 100; Standard Radio Corp. (ID = 2321353) Radio
Use red slider bar for more.
SR-H 100; Standard Radio Corp. (ID = 2321350) Radio
Standard Radio Corp.: SR-H 100 [Radio] ID = 2321350 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR-H 100, Standard Radio Corp. (SR), Tokyo

Country:  Japan
Manufacturer / Brand:  Standard Radio Corp. (SR), Tokyo
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner

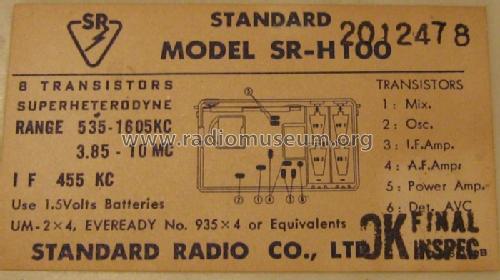

Semiconductors (the count is only for transistors) 8: 2T73 2T73 2N218 2N218 2N215 2N215 2N217 2N217
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: SR-H 100 - Standard Radio Corp. SR, Tokyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 191 x 113 x 51 mm / 7.5 x 4.4 x 2 inch
Notes 2 Band AM portable Radio, SW 3,8 to 10 MHz.
Net weight (2.2 lb = 1 kg) 0.750 kg / 1 lb 10.4 oz (1.652 lb)
Source of data -- Collector info (Sammler)
