Auto-Reisesuper Capri

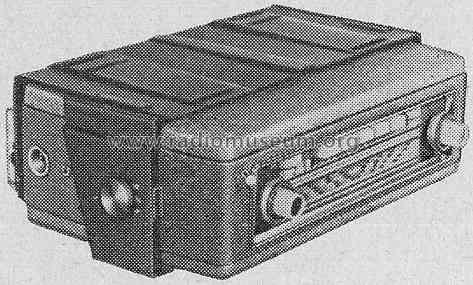

Auto-Reisesuper Capri ; Imperial Rundfunk (ID = 457313) Radio Auto-Reisesuper Capri ; Imperial Rundfunk (ID = 457314) Radio
Auto-Reisesuper Capri ; Imperial Rundfunk (ID = 564396) Radio
Use red slider bar for more.
Auto-Reisesuper Capri ; Imperial Rundfunk (ID = 457313) Radio
Imperial Rundfunk: Auto-Reisesuper Capri [Radio] ID = 457313 462x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model Auto-Reisesuper Capri, Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

Country:  Germany
Manufacturer / Brand:  Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF115 AF114 AF116 AF116 AF116 OC71 OC75 AC128 AC128 OC303
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: Auto-Reisesuper Capri - Imperial Rundfunk und Fernseh
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 300 x 185 x 90 mm / 11.8 x 7.3 x 3.5 inch
Notes Sparschaltung bei Kofferbetrieb; Anschluss an Autobatterie 6/12 V über Autohalterung, dann Ausgangsleistung = 1,8 W.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 328.00 DM
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
