Imperial 44GL 110 V

Imperial 44GL; Stassfurter Licht- (ID = 6887) Radio

Imperial 44GL; Stassfurter Licht- (ID = 221611) Radio
Imperial 44GL; Stassfurter Licht- (ID = 1003) Radio Imperial 44GL; Stassfurter Licht- (ID = 1581783) Radio
Use red slider bar for more.
Imperial 44GL; Stassfurter Licht- (ID = 1003) Radio
Stassfurter Licht-: Imperial 44GL [Radio] ID = 1003 473x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 44GL 110 V, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: RENS1834 RENS1894 RENS1854 BL2 EUI
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Direct Current supply (DC) / 110 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Imperial 44GL [110 V] - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 440 x 455 x 335 mm / 17.3 x 17.9 x 13.2 inch
Price in first year of sale 294.00 RM
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk

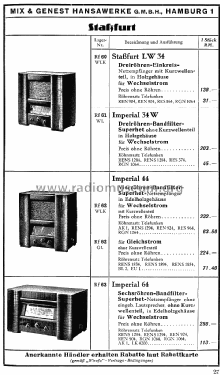

Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
