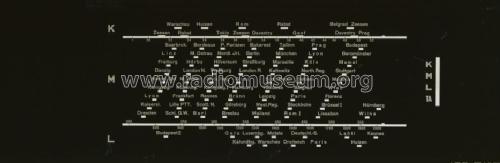

Imperial 50GWK; Stassfurter Licht- (ID = 801942) Radio
Use red slider bar for more.

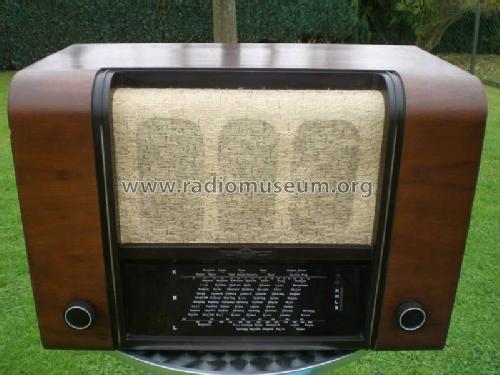

Imperial 50GWK; Stassfurter Licht- (ID = 679656) Radio
Stassfurter Licht-: Imperial 50GWK [Radio] ID = 679656 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 50GWK, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH11 UBF11 UCL11 UY11 U2410
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial 50GWK - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 390 x 305 mm / 21.7 x 15.4 x 12 inch
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 246.00 RM
Source of data Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

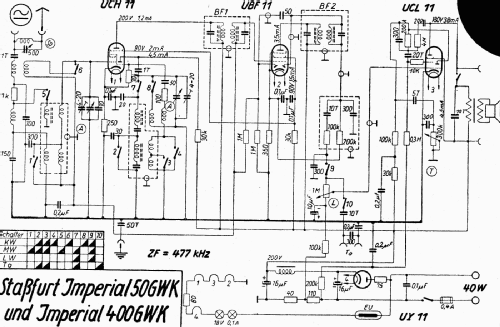

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung

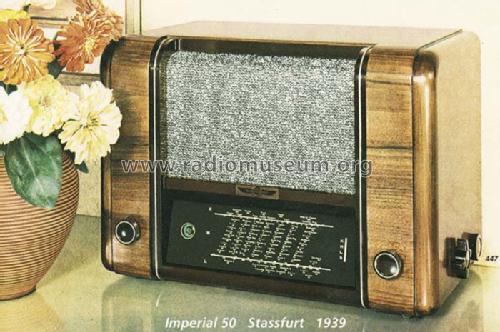

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
