• Country
• Germany

• Manufacturer / Brand
• Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5013

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

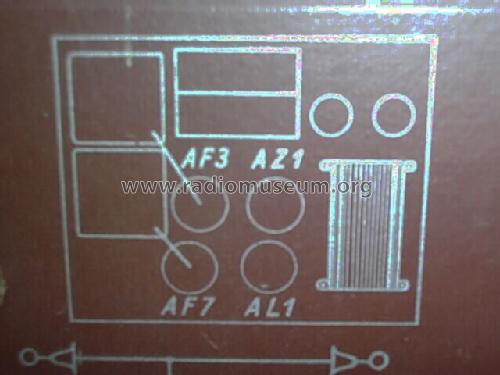

• AF3 AF7 AL1 AZ1

• Main principle
• TRF with regeneration; 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

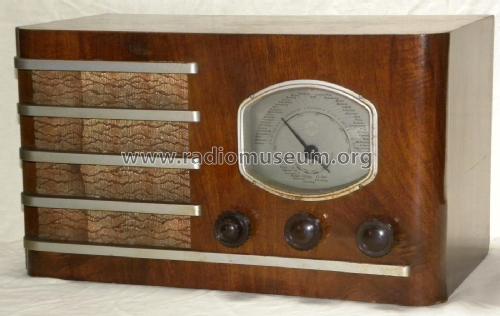

• Model: LW36 - Stassfurter Licht- und

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 550 x 290 x 300 mm / 21.7 x 11.4 x 11.8 inch

• Notes
• f führt als 36LW

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Mentioned in
• Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) (1)

• Other Models

• Here you find 224 models, 173 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
