W42 alt

W42; Stassfurter Licht- (ID = 6954) Radio
W42; Stassfurter Licht- (ID = 1435203) Radio W42; Stassfurter Licht- (ID = 1131832) Radio
W42; Stassfurter Licht- (ID = 1131834) Radio W42; Stassfurter Licht- (ID = 1441612) Radio
W42; Stassfurter Licht- (ID = 1441613) Radio W42; Stassfurter Licht- (ID = 1441614) Radio
W42; Stassfurter Licht- (ID = 1835582) Radio W42; Stassfurter Licht- (ID = 1939829) Radio
W42; Stassfurter Licht- (ID = 1939830) Radio W42; Stassfurter Licht- (ID = 2621108) Radio
Use red slider bar for more.
W42; Stassfurter Licht- (ID = 1435203) Radio
Stassfurter Licht-: W42 [Radio] ID = 1435203 676x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model W42 alt, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1931/1932 Category: Broadcast Receiver - or past WW2 Tuner

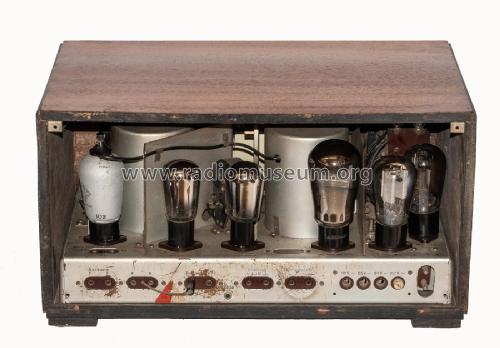

Valves / Tubes 6: RENS1204 REN904 REN904 RE304 or RE604 RGN1054 RGN1054
Main principle TRF with regeneration; 1 Special; 2 AF stage(s); Reaction
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: W42 [alt] - Stassfurter Licht- und
Material Wooden case
Dimensions (WHD) 470 x 255 x 285 mm / 18.5 x 10 x 11.2 inch
Notes

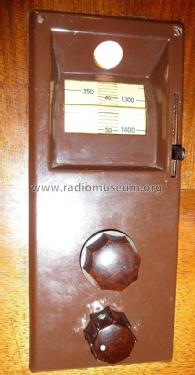

Trommelskala [501]

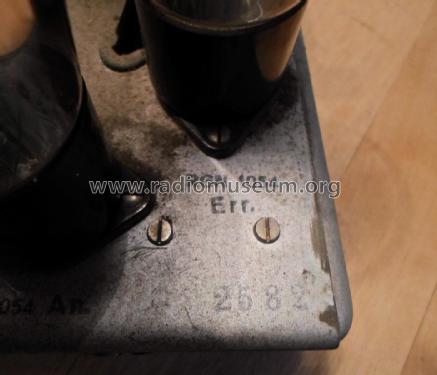

Ersatztype für RGN1054 ist RGN1064 (die im Schaltplan eingetragen ist)

Price in first year of sale 178.00 RM +
Source of data Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Historische Radios Band II (154)


All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
