• Country
• United States of America (USA)

• Manufacturer / Brand
• Steinite Radio Co., Warwick Mfg.Co.; Atchinson

• Year
• 1933 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 320478

• • Brand: Marvel

• Number of Tubes
• 5

• Valves / Tubes
• 77 78 77 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org

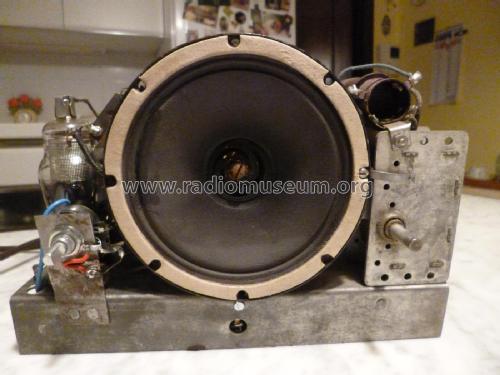

• Model: Marvel Micro-Midget - Steinite Radio Co., Warwick

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 190 x 140 mm / 11 x 7.5 x 5.5 inch

• Author
• Model page created by Vittorio Sartori. See "Data change" for further contributors.

• Other Models

• Here you find 90 models, 26 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
