• Country
• Great Britain (UK)

• Manufacturer / Brand
• Stella Radio & Television Company Ltd.; London

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127889

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• AF115 AF114 AF115 AF116 AF116 AF116 OC70 OC71 OC71 OC81D or. AC128 OC71 OC71 OC81D or. AC128 AD140 or. AD149 AD140 or. AD149

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AM/FM Stereophonic Radiogram ST328AT - Stella Radio & Television

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• A mains powered AM/FM stereophonic radiogram with a 2 x 3 watt transistor amplifier, two loudspeakers, a Garrard Autoslim four speed autochanger with a GP83 cartridge and an AM/FM transistor tuner covering  MW (185-555 metres), LW (1080-1875 metres), SW (17-50 metres) and VHF (87-100 MHz). Metal rectifier. Sockets for external AM and FM aerials, tape recorder and for an optional multiplex FM stereo adaptor.

  Similar to the Philips F6G40AT stereophonic radiogram which has a Philips AG1025 autochanger.

• Source of data

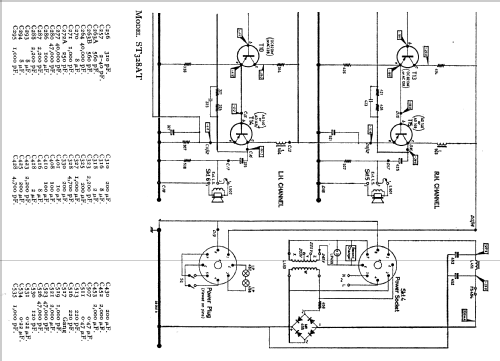

• -- Schematic

• Literature/Schematics (1)

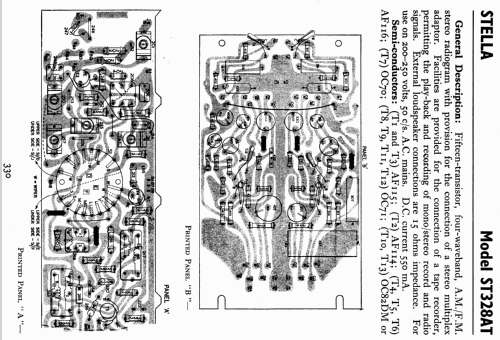

• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1726 dated 22 October 1965)

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
